Shop Maretron TRCF micro female termination resistor with IP68-rated housing and 120-ohm resistance for NMEA 2000 backbone networks.
14 in stock
14 in stock

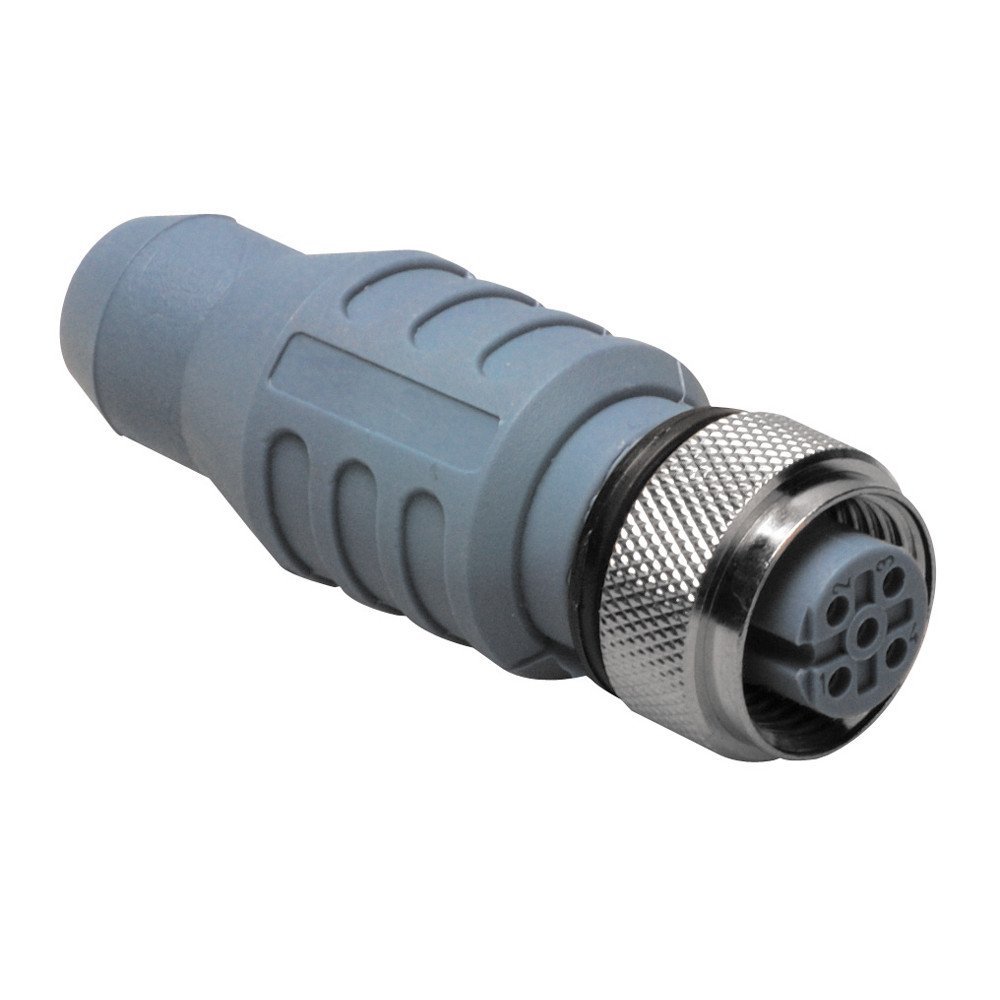

The Maretron TRCF Micro Female Termination Resistor is designed to terminate one end of a NMEA 2000 network backbone and maintain proper signal integrity across connected devices. Featuring a 120-ohm internal resistor, it helps eliminate network reflections that can interfere with communication performance. || The connector features a waterproof IP68-rated housing, brass contacts with gold plating, and a screw terminal connection for secure installation. Its Micro connector format is commonly used in compact marine electronics networks and recreational vessel applications. || NMEA 2000 and IEC 61162-3 approved, the TRCF integrates with compliant network systems and supports long-term operation in demanding marine environments. It is an essential component for building or servicing reliable onboard communication networks.
| Brand | Maretron |
|---|---|
| Model | TRCF |
| MPN | TR-CF |
| Product Type | Termination Resistor |
| Material | Thermoplastic PUR |
| Finish Color | Gray |
| Dimensions | 1 x 1 x 1 in |
| Weight (lb) | 0.1 lb |
| Load Capacity | Not Published |
| Drawer Count | Not Published |
| Drawer Type | Not Published |
| Lock Type | Screw Connector |
| Mount Type | Inline Network |
| Installation | Trunk End |
| Compatibility | NMEA 2000 Micro |
| Use Case | Backbone Termination |
| Warranty | Not Published |
| Country of Origin | Mexico |
| Series | Micro Network |
| UPC | 873804001661 |
