Shop the Maretron DCM100-01 for NMEA 2000 battery monitoring with included 200A current sensor and state-of-charge tracking for marine systems.
Out of stock
Out of stock

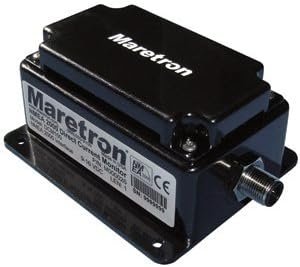

The Maretron DCM100-01 DC Power Monitor is a NMEA 2000-certified monitoring module designed to measure voltage, current, battery condition, and power usage across marine DC electrical systems. The included 200A Hall-effect current transducer installs without cutting battery cables, while onboard monitoring tracks battery voltage, current, temperature, state of charge, and estimated runtime. || The DCM100-01 is ideal for monitoring batteries, alternators, solar charging systems, wind generators, inverters, windlasses, and refrigeration circuits. Real-time data is transmitted across a NMEA 2000 network for viewing on compatible marine displays, helping boat owners manage electrical loads and charging performance. || The package includes a 200A current transducer, temperature sensor, and fused power cables for installation. Advanced battery algorithms calculate charge efficiency and remaining runtime, making the DCM100-01 a valuable addition to cruising vessels, sailboats, and powerboats that rely on accurate energy management.
| Brand | Maretron |
|---|---|
| Model | DCM100-01 |
| MPN | DCM100-01 |
| Product Type | DC Power Monitor |
| Material | Electronic Module |
| Finish Color | Black |
| Dimensions | 3.5 x 4.2 x 2 in |
| Weight (lb) | 13 oz |
| Load Capacity | 200 A |
| Drawer Count | Not Published |
| Drawer Type | Not Published |
| Lock Type | Not Published |
| Mount Type | Surface Mount |
| Installation | NMEA 2000 Network |
| Compatibility | NMEA 2000 Systems |
| Use Case | Marine Battery Monitoring |
| Warranty | Not Published |
| Country of Origin | USA |
| Series | DCM100 |
| UPC | 873804000183 |
