Shop Blue Sea 7620 ML-ACR with 500A continuous rating, automatic charging relay functionality, and remote battery bank control.
Out of stock
Out of stock

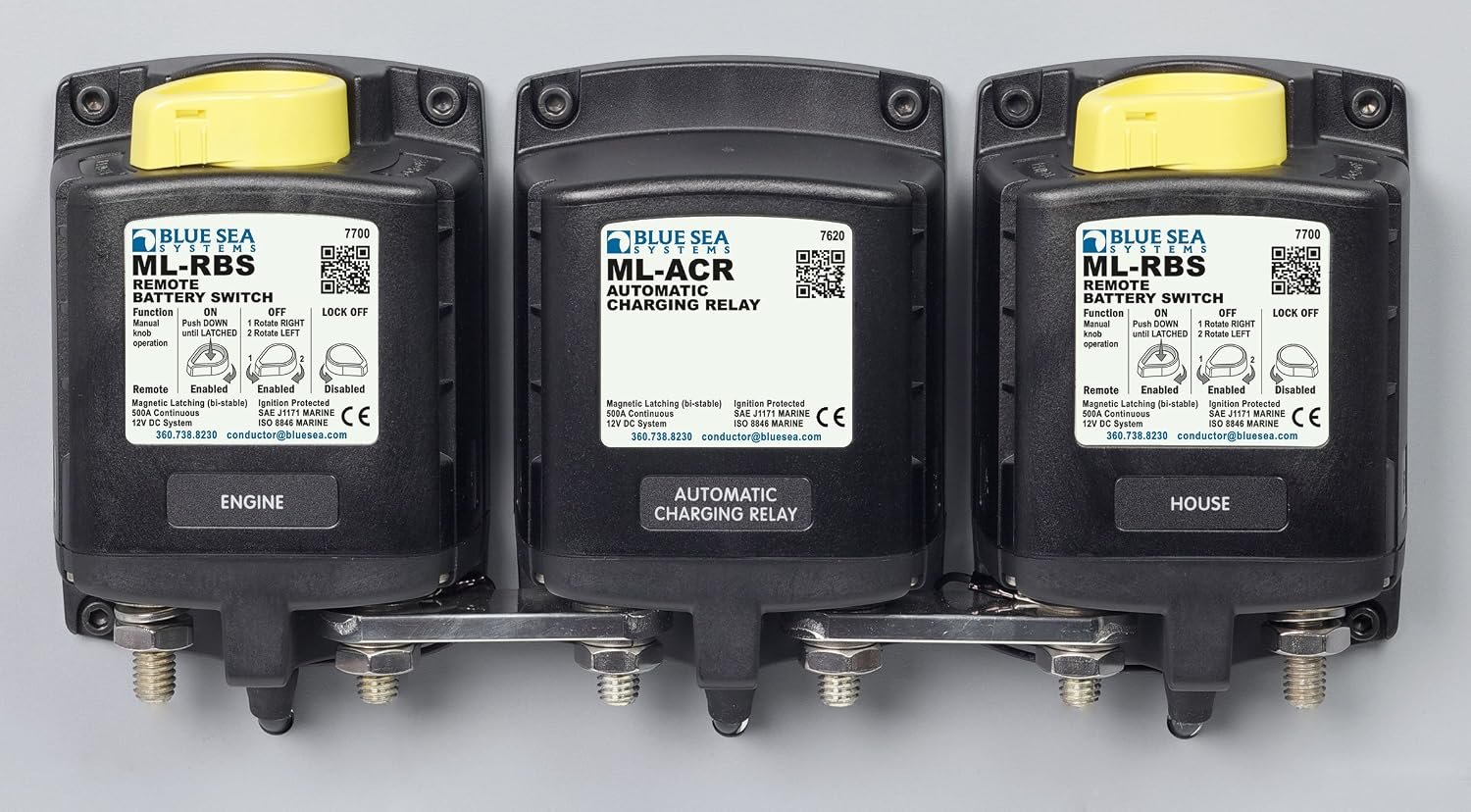

The Blue Sea Systems 7620 ML-ACR is a 12V automatic charging relay designed to manage charging between multiple battery banks while protecting starting batteries from unnecessary discharge. With a 500-amp continuous current rating, the relay automatically combines batteries during charging and isolates them when charging stops. || Remote operation allows convenient control from helm stations or electrical panels, while manual combine and manual isolation functions provide flexibility during emergency starting situations and battery maintenance procedures. || Designed for marine, RV, emergency vehicle, and commercial applications, the ML-ACR simplifies battery management while helping maximize charging efficiency. Its sealed construction and heavy-duty contacts support demanding high-current installations requiring dependable battery control.
| Brand | Blue Sea Systems |
|---|---|
| Model | ML-ACR |
| MPN | 7620BSS |
| Product Type | Charging relay |
| Material | Sealed Composite |
| Finish Color | Black |
| Dimensions | 5.3 x 5.0 x 3.2 in |
| Weight (lb) | 2.9 lb |
| Load Capacity | 500 Amps |
| Drawer Count | Not Published |
| Drawer Type | Not Published |
| Lock Type | Not Published |
| Mount Type | Surface Mount |
| Installation | Hardwired |
| Compatibility | 12V Battery Banks |
| Use Case | Battery Management |
| Warranty | Limited lifetime |
| Country of Origin | United States |
| Series | ML-ACR |
| UPC | 632085076207 |
